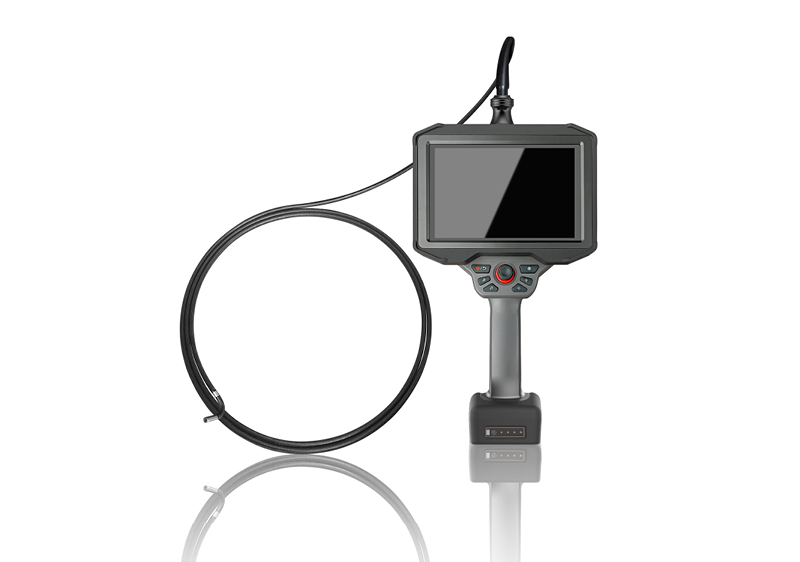

EXPLOSION-PROOF VIDEOSCOPE
DESCRIPTION

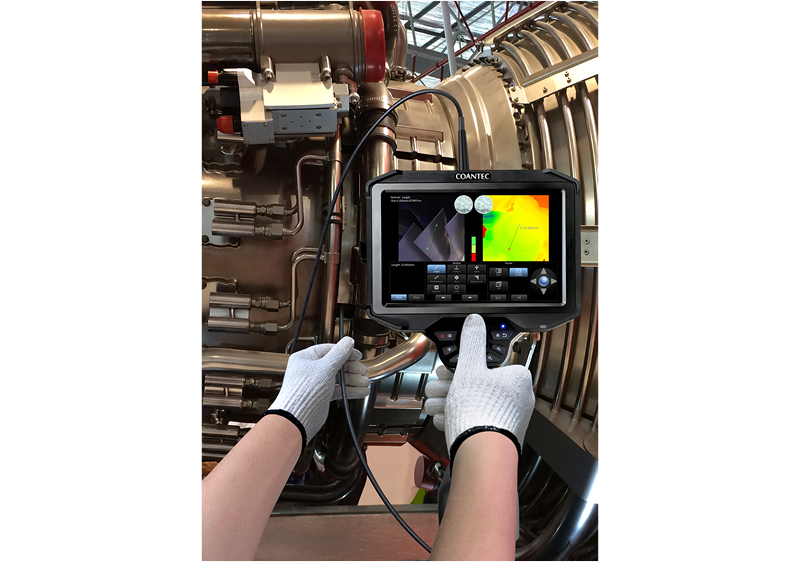

The Coantec X5 combines high-performance imaging, advanced image processing, AI technology. Upgrade to the pro version for a high-precision 3D measurement system for clear imaging and accurate defect measurement in complex inspection environments.
The X5 features a 7-inch IPS Full HD touchscreen, Ultra HD camera, high-sensitivity image sensor and advanced image-processing algorithms to provide clear, detailed images that reveal fine defects inside equipment and components.
The X5 Standard is designed for high-performance visual inspection, while the X5 Pro adds advanced 3D measurement capabilities for precise defect analysis.
Safe Inspection in Hazardous Environments
The X5 is an intrinsically safe videoscope certified for use in hazardous environments.
Explosion-proof certification: SYEx25.01163X
Ex marking: Ex ib IIC T4 Gb
7-inch IPS Full HD touchscreen

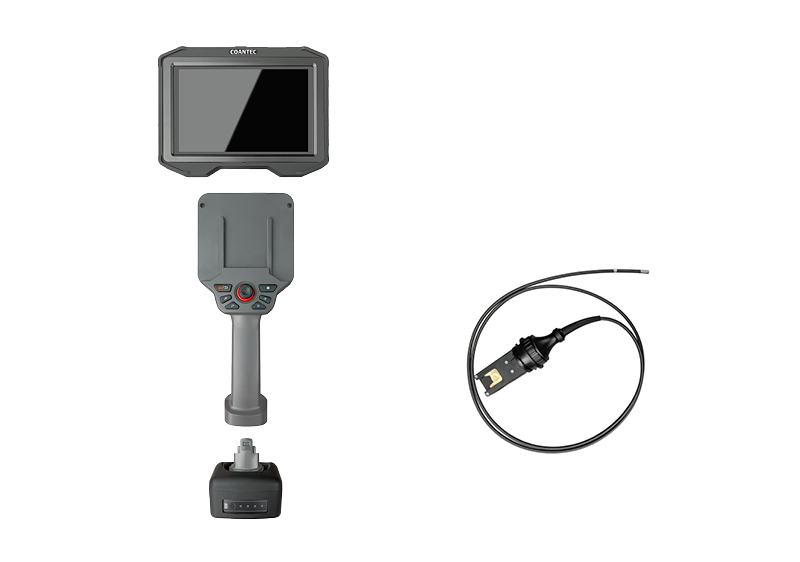

Modular, Flexible Design
The main unit supports a range of interchangeable insertion tubes. The 4mm, 6mm and 8mm versions support interchangeable lenses and multiple illumination options.
Interchangeable lenses: Direct-view and side-view, Macro, Near-focus, Wide-angle, Medium-focus, Far-focus
Ships with standard white light Illumination with options for: Infrared night vision, UV light or Laser illumination
A patented motor-controlled tube replacement system allows quick removal and replacement of insertion tubes, reducing downtime and improving inspection efficiency.
KEY FEATURES
- Ultra HD image quality with advanced image-processing algorithms

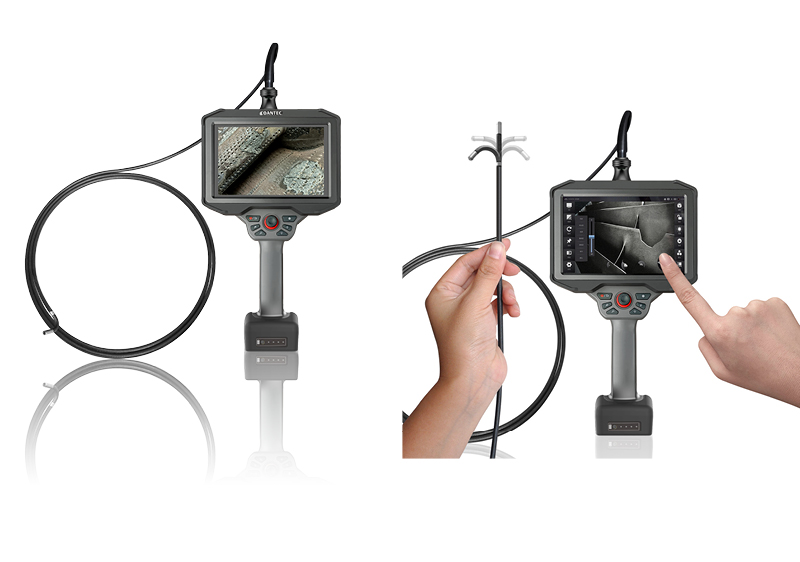

- 360° motor-controlled articulating probe
- Ergonomic handheld design
- Dual-battery power system providing up to 6 hours of operation
- Detachable touchscreen display
- Modular insertion tubes for flexible inspection requirements
- Unique dual-thread lens connection
- 16 GB built-in storage, expandable to 128 GB
- Quick insertion-tube assembly and replacement
- AI-assisted inspection technology
- High-precision 3D measurement on the X5 Pro
- Intrinsically safe design for hazardous environments
The Coantec X5 provides a flexible, efficient and reliable solution for professional visual inspection and precision defect measurement across a wide range of industrial applications.
SPECIFICATIONS AT A GLANCE
| Display specifications: | IPS HD touch screen |
| Display size: | 7-inch |
| Display resolution: | 1920*1200 |
| User interface: | Menu navigation via touchscreen, physical buttons, and joystick |
| Storage capacity: | Default 16GB, Expandable to 128GB |
| Standard RAM: | 8GB |
| Image storage format: | JPG/BMP |
| Video storage format: | MP4 |
| Size: | 350mm*197mm*126mm |
| Packaging size: | 551mm*351mm*240mm |
| Weight (including battery): | 1.96kg |
